To order Isinglass scale drawings please visit the Drawings Page where the full range in all scales are available. Follow Isinglass on Facebook facebook1 for latest updates.

 Gresley 8’ 6” Bogies in 4mm

High detail bogie 3D printed in resin, 26mm axle width, waisted/pin point bearings required.  Smaller axle fit can be provided on request.

Amazing work from Isinglass. These bogies are really worth it and the quality of the prints is astounding. Highly recommend getting them. Tom Crouch, Facebook

    .

Gresley 8-6 bogie

Gresley 8-6 HD bogie

8ft hd bogie

Pair of Gresley 8’6” standard bogie in 4mm

Qty

Pair of Gresley 8’6” Heavy Duty bogie in 4mm

Qty

Pair of Gresley 8’ Heavy Duty bogie in 4mm

Qty

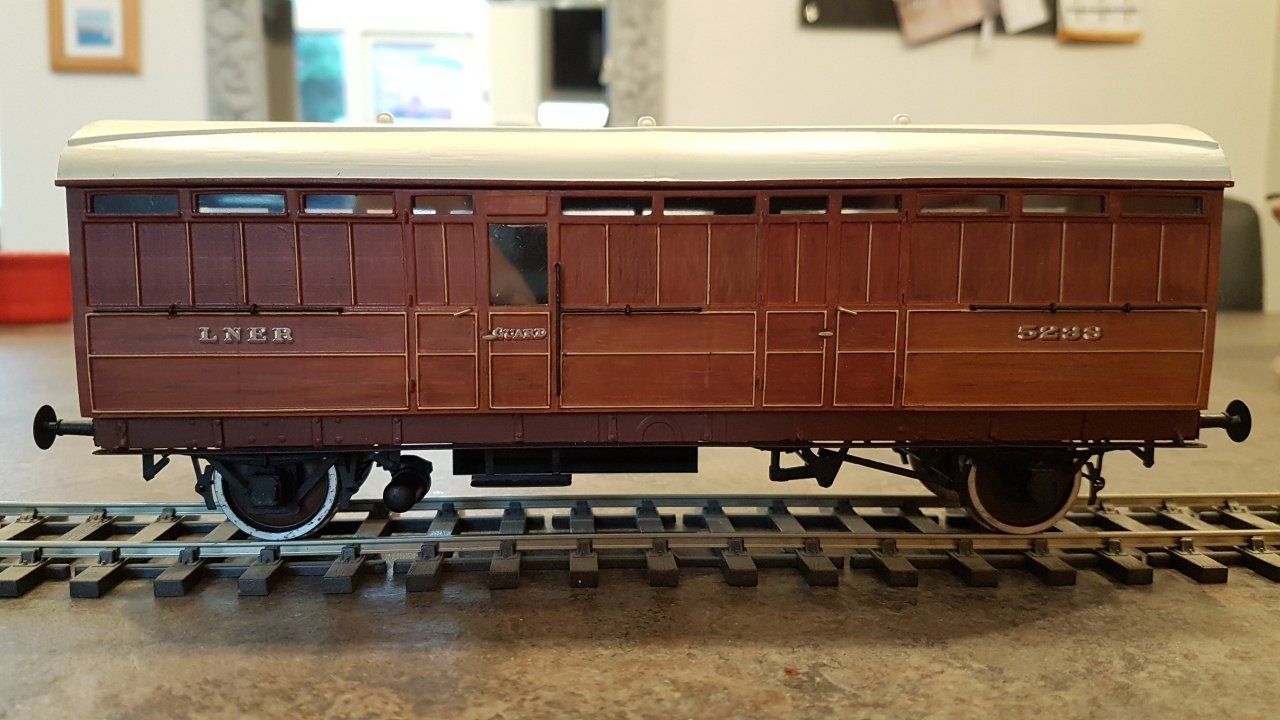

High Detail Carriage body kits in 4mm & 7mm.

    3D printed in resin with very low visibility of print lines. Each kit contains sides, ends and roof with beading, hinges and guide holes already prepared. The resin glues easily and accepts standard paints with no additional preparation.4mm sides are in 1 piece. 7mm sides will be in 2 pieces.

    Where possible I’ll include vents and other accessories as they become available

What Does the kit include?

    Each 30 Kit includes, sides, ends , roof,torpedo vents and an Isinglass (not to scale) drawing of the diagram.. The kit is designed to take a plasticard floor of up to 1.5mm, although On request I can include a custom designed floor pan with  under frame at a few pounds extra cost The frames have been tested with Hornby and MJT bogies. Bogies avaiable at top of page.

Can’t see the diagram you need?

    If the drawing is in the Isinglass catalogue then a 15 deposit adds it onto the ‘Will do’ list. Cost remains 30 per 4mm carriage

    If the drawing isn’t in the catalogue, I can still consider it but it may be priced as a commission

The East Anglian Set.

Drawing set 9 from the Isinglass range. The East Anglian first ran in service on September 27th,1937 between Norwich and Liverpool Street calling only at Ipswich in both directions. Alowed 2 hours and 15 minutes it ran Monday to Friday.
The train consisted of 6 carriages and no spare stock was available. Hauled by the 2 streamlined B17/5 (see isinglass drawing 306), one working in each direction. Except when only one was available , then it would haul the up and down 'Fast Anglian'. During the war years, the carriages (except restaurants) were cascaded into general service before reforming in 1946 hauled by a B1

Qty

eastAnglianrest3rd

The Great Eastern Quint-art Set.

Drawing set 8 from the Isinglass range. Initially this set represents the later diagrams (81 -85) running on 8ft bogies with a full width brake van. Diagrams 76-80 with 8’6” bogies and narrower brake van available on request.

The quint-art was the ubiquitous air-braked Great Eastern suburban set from 1925 into the 1950’s and beyond.



Qty

Add frames, bogies and benches?

Add a 4mm frame to your kit order

Qty

New Kit Request from the Isinglass Drawings Catalogue

Qty

The most recent kit list can be viewed on the 3D drawings page or downloaded form here. New diagrams are being added and worked on regularly.

GN Diagram 274 Lavatory Brake Third Open, Drawing 212

Qty

GN Diagram 219 Semi Open third Drawing 241

Qty

GN Diagram 256/257 Sheffield Stock Corridor Brake third, drawing 246

Qty

52’6” Eastern region Stock

Qty

51’ Suburban Stock - 1st/3rd/compo /full brake, various 3rd brake, artic sets on request, price per carriage.

Qty

GN Diagram 60 - Sheffield Stock composite Dining Carriage. Drawing 108

Qty

East Anglian Set, 6 Carriages, Diagrams 236-240, Isinglass Set 9

NB - Set prices for Scales other than 4mm may not calculate correctly! Please contact for accurate qoute.

Qty

Diagram 11, 61'6" Restaurant Car, drawing 156

Qty

Diagram 307 twin articulated Steel Open third , Drawing 151

Qty

ECJS Diagram 80A York 52' Kitchen Car drawing 148

Qty

GNR/ECJS Diagram 164F Corridor composite drawing 256

Qty

Roof Only

Qty

Please Note: If you want a roof to fit another suppliers kits, you’ll need to send a images of the end (with a ruler ) so that I can match the profile exactly. This is an easy process that can produce roof profiles for any size/make of carriage/van

Sides Only

Qty

Ends only

Qty

Other Isinglass Drawing

Qty





















Chimneys and Torpedo vents in scales up to 10mm. Any other parts you need? Please email your request

Torped Vents (x 20)

Select the scale:

torpedo vents

D49 Chimney

Select the scale:

J39 Chimney

Select the scale:

K2/2 Chimney

Select the scale:

J50 Chimney

Select the scale:

Other Chimney

Select the scale:





3D printed custom components

Exhibitions are always interesting and visitors often bring challenges to work on that include pointed smokebox doors, gear and flywheels, lampshades and 4mm window frames for an exhibition layout. All of these have been designed on the stand during a show with the customers feed back as the design progresses.
Pullman Table photo by John Crowther
Pullman Table photo by John Crowther

DSC_0479

7mm Lampshades, printed on the FDM machine then fitted as working lamps,

Gears and flywheels, ratios and sizes to customer specification. Detail too fine for commercial 3D print shops.

picket fence - Model created  by Adrian Simpson

chinese depot

Picket fence in 7mm - Model prepared by a customer and produced by Isinglass

Chinese Depot and shop fronts- Window and door frames designed and produced by Isinglass.

If there’s a part you can’t obtain elsewhere or manufacture yourself, email Isinglass for a quote.
