7mm drawings
7mm to the foot 'O' Gauge drawings available in this category.
These are the same drawings as at 4mm, accurately enlarged with scale information changed. The quality of the drawings have not been reduced by enlarging them and many of the drawings have been digitally updated to clarify some details from the original.
7mm scale drawing 130 : 48' 6" Howlden 8 wheel clerestory Directors Saloon http://www.bluebell-railway.co.uk/bluebell/gnr_saloon.html Diagram GN 14
7mm scale drawing 130 : 48' 6" Howlden 8 wheel clerestory Directors Saloon http://www.bluebell-railway.co.uk/bluebell/gnr_saloon.html Diagram GN 14
£13.50
7mm scale drawing 139 : 63' 6?" Howlden / Gresley 12 / 8 wheel clerestory or Elliptical corridor composite (1st Gresley Carriage) Diagram GN 101, 102, 104, 105,248 H
7mm scale drawing 139 : 63' 6?" Howlden / Gresley 12 / 8 wheel clerestory or Elliptical corridor composite (1st Gresley Carriage) Diagram GN 101, 102, 104, 105,248 H
£13.50

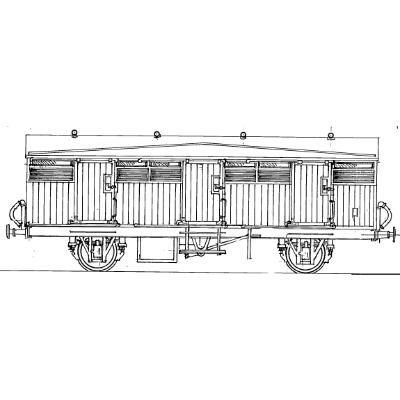

7mm scale drawing 144 : 56 6" Gresley ECJS/GNR Luggage Brake (Composite of several post 1906 GN NE ECJS Luggage Brakes) Diagram EC 38 39 39A 39B 39C 39E GN J13 J18 286 287 308
7mm scale drawing 144 : 56 6" Gresley ECJS/GNR Luggage Brake (Composite of several post 1906 GN NE ECJS Luggage Brakes) Diagram EC 38 39 39A 39B 39C 39E GN J13 J18 286 287 308
£13.50
7mm scale drawing 149 : 58' 6" Gresley ECJS Corridor 3rd class (1907 build) Diagram EC 34 22 GN /NE 7 NB 249B 241B GC 56B 56 C 56J GE 412 GNS 113S
7mm scale drawing 149 : 58' 6" Gresley ECJS Corridor 3rd class (1907 build) Diagram EC 34 22 GN /NE 7 NB 249B 241B GC 56B 56 C 56J GE 412 GNS 113S
£13.50
