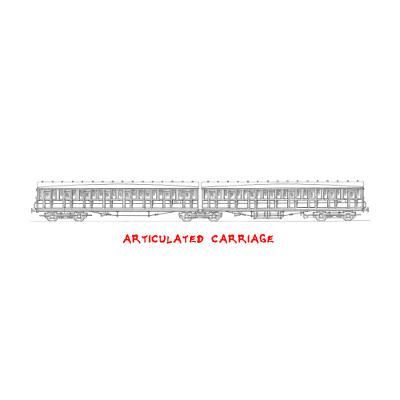

articulated carriage

4mm scale drawing 100 : 105' 1" Gresley Steel twin corridor Brake 3rd Diagram 194 195 304

4mm scale drawing 114 : 103' 4" Gresley ordinary twin brake 3rd class (each 51' 1?") 4 plus 8 compartments Diagram 247 278

4mm scale drawing 115 : 103' 4" Gresley ordinary twin 3rd class (each 51' 1?" and 8 compartments) Diagram 105 106

4mm scale drawing 116 : 103' 4" Gresley ordinary twin brake lavatory composite (each 51' 1?", 4 + 4 3rds & 3 1st) Diagram 107 108

4mm scale drawing 117 : 103' 4" Gresley ordinary twin brake lavatory composite (each 51' 1?", 5 + 4 3rds class & 3 1st class) Diagram 110

4mm scale drawing 118 : 103' 4" Gresley ordinary twin composite (each 51' 1?", 7 1st class and 8 3rd class) Diagram

4mm scale drawing 119 : 115' 8" Gresley Ordinary twin brake composite lavatory (6 + 5 3rd class + 2 1st class) Diagram 210 313

4mm scale drawing 141 : 99' 6" Gresley Corridor Twin brake composite Diagram GN 218CC

4mm scale drawing 142 : 99' 6" Gresley Corridor twin pantry brake composite Diagram GN 218 DD

4mm scale drawing 143 : 99' 6" Gresley Corridor twin brake 1st class Diagram GN 99

4mm scale drawing 151 : 105' 1" Gresley Tourist & Steel twin open 3rd class Diagram 171 180 307

4mm scale drawing 170 : 76' 1" ECJS GNR Corridor twin articulated composite (ex 6 wheel stock) Diagram EC 5 GN 164O

4mm scale drawing 171 : 72' 7?" GNR twin articulted luggage lavatory composite (ex 6 wheel stock) Diagram GN 134

4mm scale drawing 172 : 69' 11" GNR twin articulated brake composite Ex 6 wheel West Riding stock Diagram GN 198 218B

4mm scale drawing 173 : 71' 2?" GNR twin brake composite (ex 6 wheel stock Luton) Diagram GN 218J 218L

4mm scale drawing 174 : 104' 5?" GNR triplet brake composite (ex 6 wheel stock Luton) Diagram GN 218K

4mm scale drawing 175 : 101' 8?" GNR triplet composite & 65' 4" twin 3rds (ex 6 wheel stock Lincoln area Diagram Trip GN 264G twin 248F

4mm scale drawing 176 : 120' 3" GNR triplet brake composite (ex 6 wheel stock West Riding|) Diagram GN 218JJ

4mm scale drawing 177 : 110' 2" GNR triplet brake composite (ex 6 wheel stock West Riding) Diagram GN 218N

4mm scale drawing 178 : 120' 2?" GNR triplet brake composite 88' 4" twin brake lavatory composite (both ex 6 wheel stock Bashford) Diagram GN 218W & GN218C

4mm scale drawing 179 : 112' 10 5/8" GNR triplet brake composite Diagram GN 218UU

4mm scale drawing 200 : 113' 6" Gresley twin 1st class sleeper Diagram 18 18A 19

4mm scale drawing 218 : 112' 1?" Gresley GNR twin brake lavatory composite (3 1st 9 3rd class) Diagram GN 218QQ

4mm scale drawing 219 : 112' 1?" Gresley GNR twin brake lavatory composite (2 1st 10 3rd class) Diagram GN 218 RR

4mm scale drawing 283 : 106' 6" Sentinel 200 HP Double engine Twin railcar articulated Diagram 99 100

4mm scale drawing 600 : 113' 6" Gresley twin 1st / 3rd class sleeper Diagram 161 162

4mm scale drawing 624 : 103' 4" Gresley ordinary twin lavatory composite Diagram 123 124

4mm scale drawing 625 : 103' 4" Gresley ordinary twin brake 3rd class (5 + 8 compartments) Diagram 125 105

4mm scale drawing 626 : 103' 4" Gresley ordinary twin brake composite (7 1st class 5 3rd class + brake) Diagram 272

4mm scale drawing 627 : 103' 4" Gresley ordinary twin brake 3rd class (5 + 8 compartments) Diagram 273

4mm scale drawing 628 : 103' 4" Gresley ordinary twin composite (7 1st class + 4 1st + 3 3rd class) Diagram 274

4mm scale drawing 629 : 112' 1?" Gresley ordinary twin brake composite (6 3rd + 4 1st + 3 3rd class) Diagram 214

4mm scale drawing 671 : 108' 9?" GN Brake Twin Composite (EX GN Railcars 7 & 8) 44141 44142 Diagram GN 218WW

4mm scale drawing 673 : 98' 1?" GN triplet brake composite ex 6 wheel stock Diagram GN 218AA

4mm scale drawing 674 : 122' 3" GN triplet brake composite ex 6 & 8 wheel stock Diagram GN 218HH

4mm scale drawing 675 : 103' 0" GN triplet brake composite ex 6 wheel stock West Riding area Diagram GN 218D

4mm scale drawing 676 : 72' GN Twin Articulated lavatory luggage composite Kings Cross area Diagram GN 164E 164D
